Situated at Howrah Kolkata West Bengal in India Joy Krishna Engineering Works is manufacturers & suppliers of C.I. Diaphragm Valve.Our products are available in various sizes and specifications.

PICTURES

FEATURES

• TYPE : "A" Weir.
• Pattern, Straight Type (KB).
• MOC : C.I. / C.S./ SS 304 / 304L / 316/ 316 L / Polypropylene.
• PRESSURE RATING ASA : 150#.
• END CONNECTION : Screwed End / Flanged End Diaphragm Valves.
• SIZES : 1/2" to 12".
• WIDELY USED FOR : Diaphragm Valves for Pharmaceutical Industry, Food, Dairy, Chemical Industries and Many More.

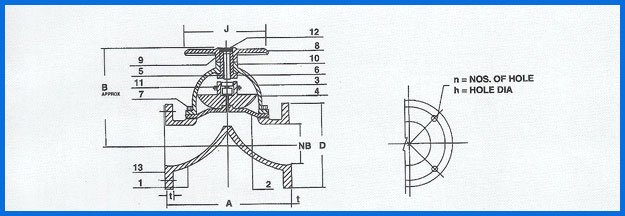

DRAWING

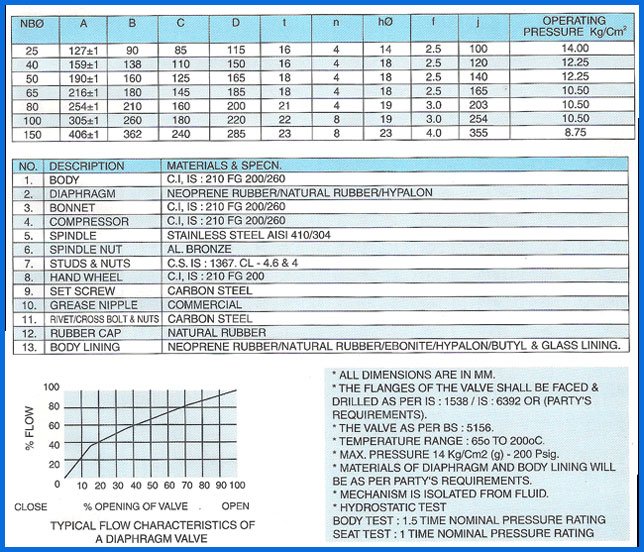

TECHANICAL FEATURES
