Situated at Howrah Kolkata West Bengal in India Joy Krishna Engineering Works is manufacturers & suppliers of Pressure Relief Valve in compliance with API 520 / ASME Section Vlll – Division l for High performance application for use on vapor, gas and liquid for over pressure protection. This Conventional safety / pressure relief valves are versatile, safe & interchangeable.

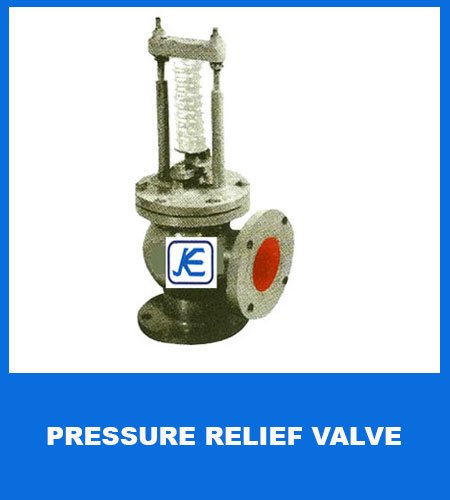

PICTURES

FEATURES

• Size: 25 x 50 mm to 250 x 350 mm.
• Rating: 150 # to 2500 #.
• Material: Cast steel, Alloy steel and Stainless steel.
• End connection: Flanged end.
• Design: API, ASME & IBR.
• Accessories: Lever , soft seat, Test Garg, Bellows etc.

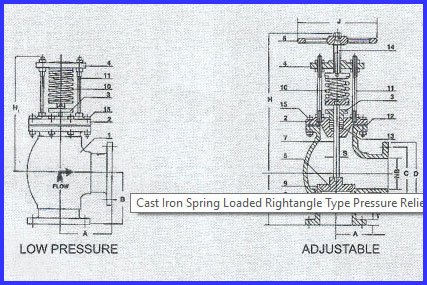

DRAWING

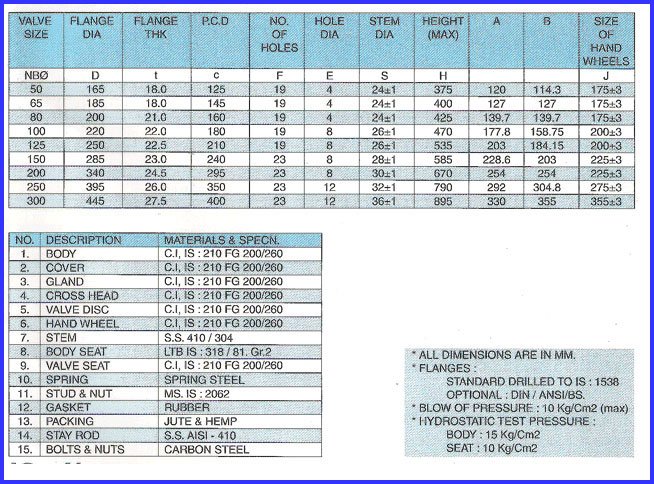

TECHANICAL FEATURES
