Situated at Howrah Kolkata West Bengal in India Joy Krishna Engineering Works is Manufacturers of Cast Iron Double Flanged Sluice Valves Non - Rising Type Conforming to IS : 14846/2000.We source and supply the best quality Sluice Valves that ensures uninterrupted flow of water. Available in different sizes, Sluice Valve caters to the different requirements of the clients.

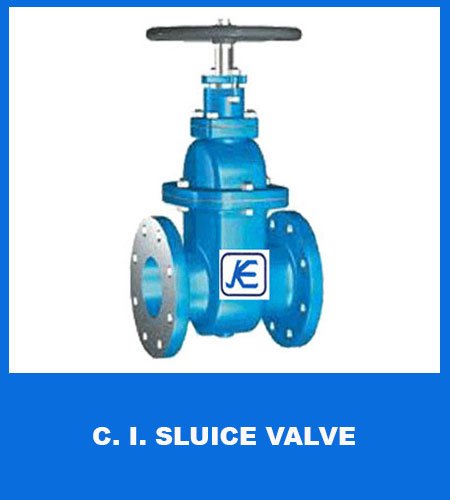

PICTURES

FEATURES

• Sturdy, Compact Construction.
• Size Range: 50 to 200mm.
• Pressure Ratings: PN 10, PN 16.
• ertical Stem & Horizontal Stem (subject to prior confirmation) installations are possible.
• Design Standard IS 14846 PN 1.0/ PN1.6.
• Flanged ends, Bolted bonnet, Inside Screw, Non rising stem.
• Hand Wheel Operated.
• Connection : Screwed, Flanged.
• Operation : Single action float operated.
• Material : WCB, CS, CF 8, CF 3, Brass, Ni Al Brz.

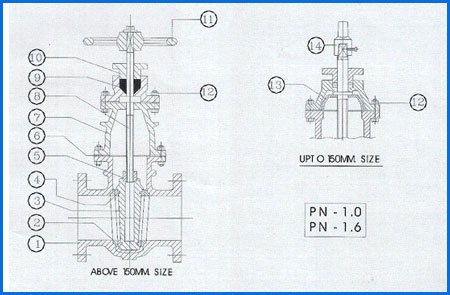

DRAWING

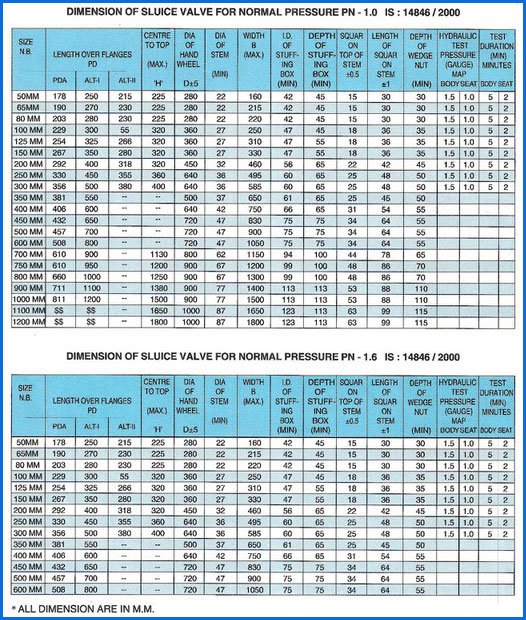

TECHANICAL FEATURES
